Direct steam injection, Using Thermo Utilities, MS Excel Add-ins

In an air conditioning plant, airflow rate of 2 kg/s passes through a steam humidifier. Determine the load on the humidifier and the steam supplied. The dry and wet-bulb temperatures of the inlet air are 9 C and 3 C respectively. Air leaves the humidifier with moisture content of 0.008


Inputs

Units

Inlet air, DBT

9,00

C

Inlet air, WBT

3,00

C

Inlet air, mass flow rate

2,00

kg/s

Outlet air, moisture content

0,008

.

Atmospheric pressure

1,01

bar

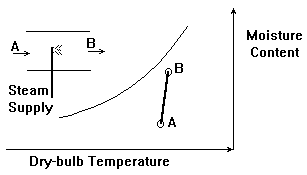

Steam can be directly injected to air stream for air conditioning purposes. In this process, all the latent heat necessary for evaporation of water is added outside the air stream. The supply of water vapor increases the enthalpy of the air. The temperature increase in this process is negligible and it can be assumed as an isothermal process with good approximation. Load on humidifier is:

Q = mA * (hB - hA)

and the steam supplied by humidifier is:

mSteam = mA * (mcB - mcA)


Output

moisture content of inlet air

0,0022

.

Outlet air, DBT

9,0000

.

Spec. enthalpy at inlet

14,5

kJ/kg

Spec. enthalpy at outlet

29,2

kJ/kg

Load on the humidifier

29,4102

kW

steam supplied

0,0117

kg/s
